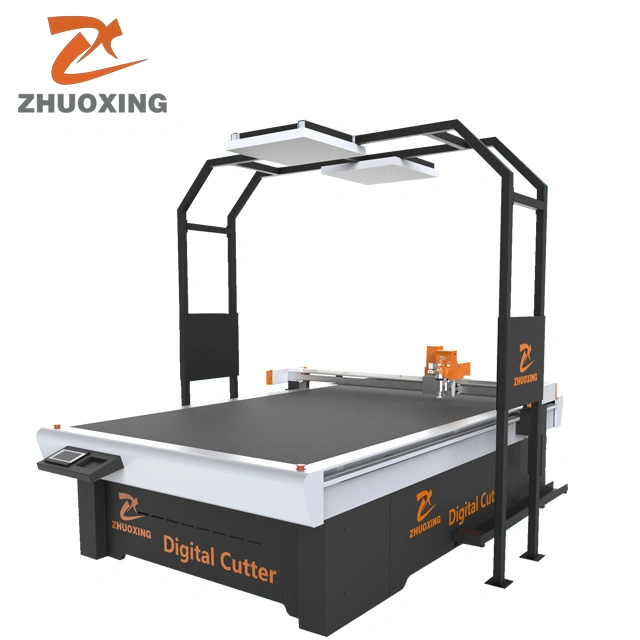

High-speed oscillating knife leather cutting machine for luggage and bags
The machine used for cutting fabric clothes,textile,carpet,sunscreen fabrics and other fabrics for blinds.
Using the Taiwan cutting system, the cut section is straight and tidy, no fray, no scorch, no fluffy and no color fading off.
The cutting tool can be cut in different ways by adjusting the type of the cutter according to the thickness of the fabric.
Simple selection of tooling via push button, or by remote control
With electricity and roller feeding system.
|Working table||Flatted working table||Automatic feeding working table|
|Operation properties||Online / offline operation; continuous cutting with high efficiency. 7*24 with zero downtime|
|Safety device||Infrared induction is used; sensitive response; safe and reliable|
|Max cutting speed||1200mm/s|
|Applicable materials||Fabric clothes,textile materials,Corrugated board, honeycomb board, grey card, other paper board, acrylic, foam, EPE, PVC sheet,Leather, PU, composite materials and other similar materials|
|Multifunctional head||oscillating knife cutting tool/vibration/vibrating knife cutting tol,rotary cutting tol,creasing tool,pneumatic cutting tool,kiss cut tool,drawing tool,milling tool,angling cutting tol,v-cut,punching tool,etc.|
|Cutting thickness||0.1-10.0mm (subject to the material cutting,customization available for thicker material)|
|Transmission interface||Network transmission|
|Fixed mode||Vacuum absorb|
|Supply voltage||AC 220V 380V±10%,50HZ|
1. Saving labour and material cost
2. Saving time
3. Everyone can operate and cut without lots of skills
4. Boost production capacity
5. Consistent accuracy even with complicated patterns
6. Reduces your lead times of pattern cutting from your clients
7. Wide range of clothes/garment/apparel material application
8. Running in a high automaton
9. Special design: less moving structure guarantee low down time and easy in installation and maintain
1.Whole film packaging machine
2.Anti-collision package edge
3.Wooden case package
1)One year free warranty(except consumable parts), main parts are free of charge
when problems happened because of quality problem during this period.
2).Life time free maintenance service.
3).Consumable parts(like blade, table cover) alway supply at cost price when needed.
4).A free operation training in our factory, and if don't have enough time, we will send
a detailed training video.
5).24 hours online service, free technical support with different languages.
6).Door to door technical support when needed.
1. How to operate this machine?
We can provide operating video, user manual or telephone calls to help you. All these is written or speaking in English at present. On-site service is also available. There is no complicated operation nor a special requirement for the operator, operating is easy.
2. What's the warranty policy?
The standard warranty is 12 months upon delivery.
3. How to judge if this cutting machine is suitable for me or not?
First, you should share something on the material (L*W*H, breathable or not) to be processed and other specific requirements, such as additional drawing function, punching holes function, etc. We will make a first-round judgment based on our experience. If necessary, we will make demo cutting for you, then we will share the video with you and discuss the possible solution.
4. Is there any after-sales service?
We have integrated after-sales service. Besides our own experienced engineers, we also offer local after-sales service through the help of our agents. All this will make you convenient.
5. Where is your factory located? How can I get there?
Our factory is based in Jinan, Shandong province, China. You can fly to Beijing, Jinan or Qingdao. We can pick you up at the air station or train station.
6. What is the shipping cost from China to my country?
It depends on the distance between you and the seaport. We offer door to door service as long as you pay the relevant cost. For the shipping cost, you can ask for our advice or from the freight forwarder.
